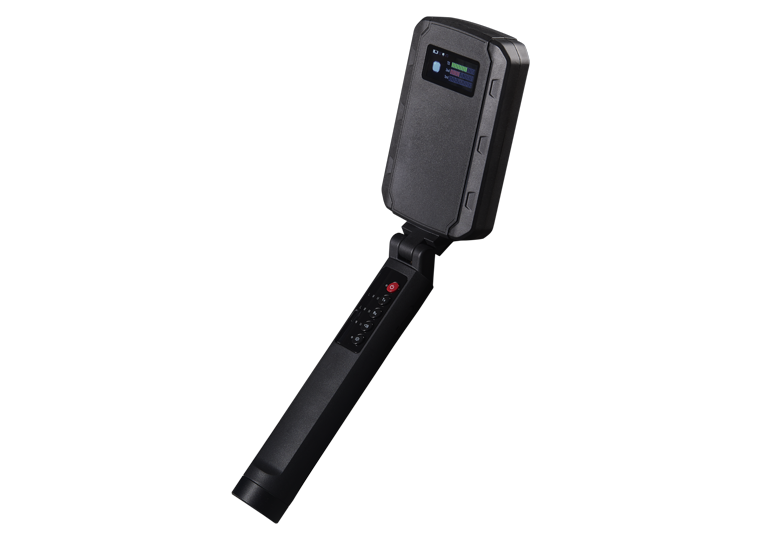

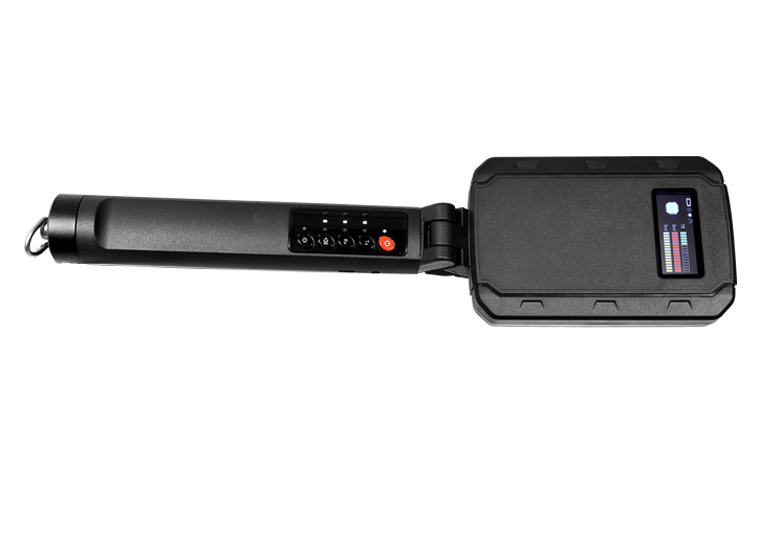

AT-802
Portable Nonlinear Junction Detector
A compact portable non-linear node detector that detects electronic devices hidden in walls, floors, ceilings, light fixtures, furniture or containers, regardless of whether they are transmitting signals or switched on and off, and can provide alarms through a variety of means such as displays, sound and vibration, so that the detectorists can find the target device, to protect the privacy of the organization and individuals.
Can be widely used in government, public security, prisons, justice, commercial security and personal privacy protection, etc.
Corporate trade secret protection: detecting unauthorized electronic devices hidden in important meeting rooms or confidential offices of the company, such as bugs, cell phones and SIM card-containing devices;
Explosive discharge: detecting electronic explosive devices and remote controls in dangerous areas;
Personal privacy protection: hidden in homes, hotels and other places of clandestine photography and recording devices, such as voice recorders, cameras and so on.
Features
Authoritative Certification
Tested and certified by Chinese authoritative institutions, in compliance with industry standards for nonlinear junction detectors.
Portable and Easy to Operate
Light, small and foldable, which is easy to carry and take away; The function buttons are clear and easy to operate.
Automatic shutdown
Fully consider the behavioral habits of flexible operators and operational needs, when folded or long time without running the equipment, no need to press the button operation, you can automatically execute the shutdown command, to achieve energy-saving and power saving, to avoid excessive consumption of batteries
Strong Detection Penetrability
Capable of detecting through a 370mm-thick brick wall and meeting industry standards as a C-level product (highest level).
Long Detection Distance
A maximum detection distance greater than 6 meters and meeting industry standards as a C-level product (highest level).
Long Battery Life
With a battery life of over 3 hours, it can meet the requirements of a single inspection task.
Specifications
Parameters Technical Specifications
Working band 2400MHz
Transmit frequency 2.4GHz~2.5GHz
Received 2nd~3rd Harmonic Range 4.8GHz~5.0GHz, 7.2GHz~7.5GHz (2nd~3rd harmonic)
Pulse Mode Transmitting Power 0~4W (EIRP), pulse mode (max)
Reception Sensitivity ≤-125dBm
Battery  Built-in lithium battery, ≥ 3h (in maximum pulse mode)
Detection distance ≥6m, C-grade products that comply with GA1236-2015
Penetrability Up to 370mm brick wall, C-grade products that comply with GA1236-2015
Interactive interface LCD display of received harmonic signal strength; Audio alerts, available through headphones or external speakers; Vibration alerts
Size 370mm * 96mm * 38.5mm
Weight 0.5kg ± 0.05kg
Working temperature -20℃~+55℃
Working humidity No more than 93%RH, with no condensate
*Special Announcement: Due to the product update and network display the existence of the conversion period, the page graphic parameters may be different from the actual product, the page graphic content does not serve as the basis for the actual delivery of specific products and technical parameters to determine the actual product configuration shall prevail. Intention to buy customers, please contact the sales staff to confirm in a timely manner, AWP retains the right to change the picture parameters and the final interpretation.
