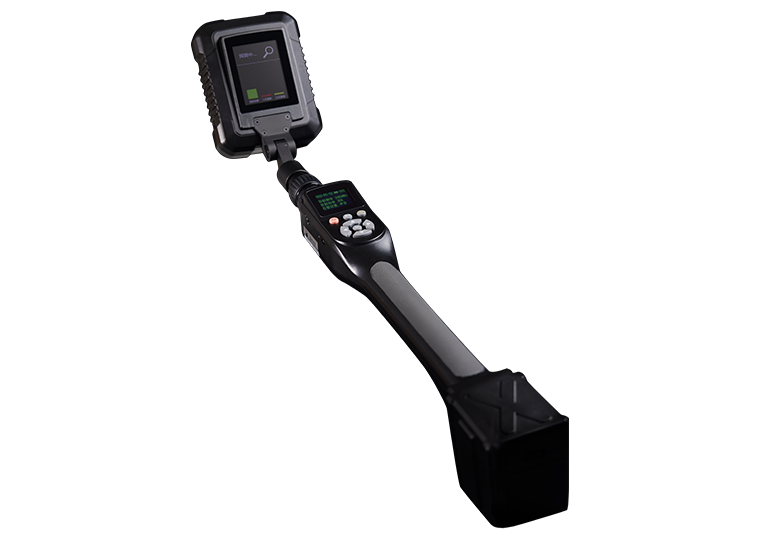

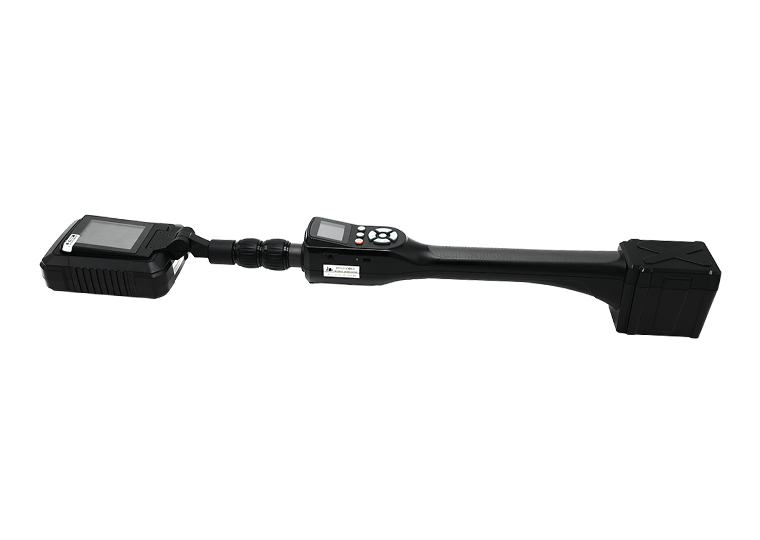

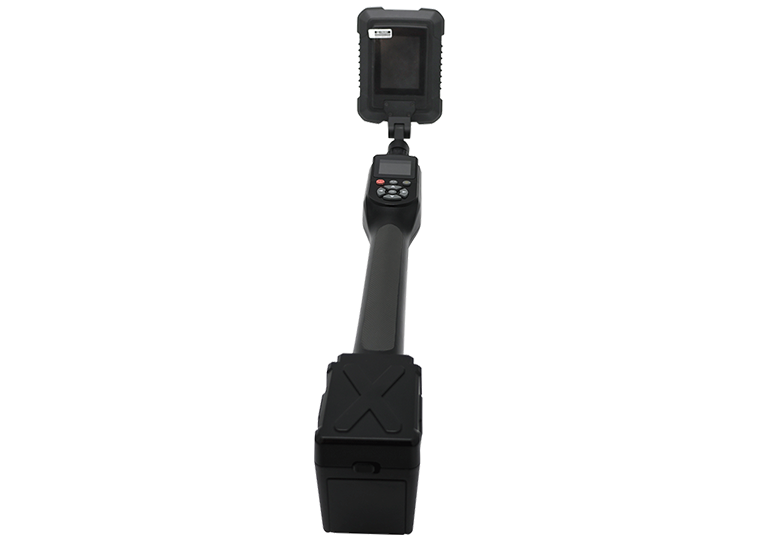

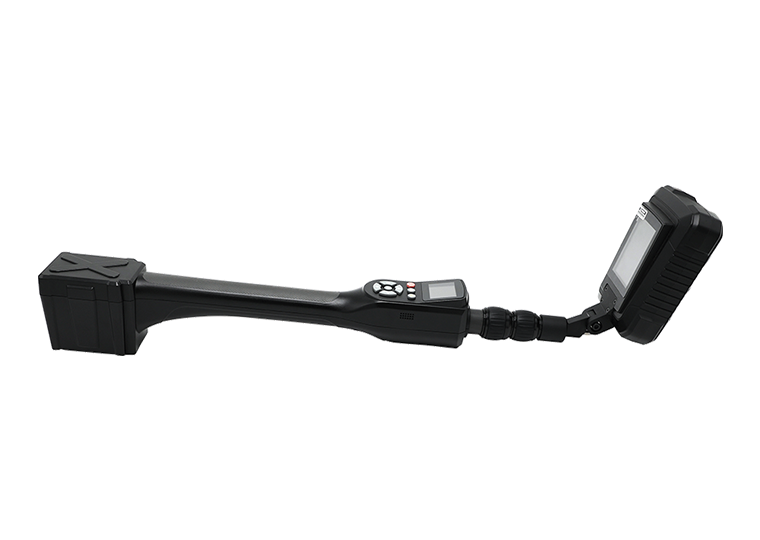

AT-811
Enhanced Nonlinear Junction Detector
A wireless signal detection unit is integrated into the non-linear node detection unit to detect eavesdropping and eavesdropping electronic devices in packages, walls, floors, ceilings, lamps, furniture or containers. For hidden electronic devices, the enhanced non-linear node detector can be alarmed by sound or vibration, while the wireless signal detection unit can quickly capture the wireless signals that are being transmitted and received, and indicate the location of the suspicious electronic devices through the screen, improve the efficiency of on-site security inspection, and effectively protect the privacy and security of governmental enterprises and individuals.
It can be widely used in government, public security, judicial, prison, and personal privacy protection fields.
Features
Authoritative Certification
Tested and certified by Chinese authoritative institutions, in compliance with industry standards for nonlinear junction detectors.
High Sensitivity
Built in high gain antenna, with a receiving sensitivity as low as -140dBm, can quickly identify equipment containing semiconductor devices hidden in walls or furniture.
Precise Positioning
Based on the principle of differential detection, accurately locate suspicious devices.
Long Battery Life
A single battery has a range of over 4 hours, which can meet the requirements of a single inspection task.
High Cost-effectiveness
Composite detection equipment reduces secondary review costs, significantly improves detection efficiency, and saves expenses.
Specifications
Prameter Description
Working band 2400MHz
Operating Voltage 7.4V
Transmit frequency 2.4GHz - 2.5GHz
Received 2nd~3rd Harmonic Range 4.8GHz~5.0GHz, 7.2GHz~7.5GHz (2nd~3rd harmonic)
Transmit power 0~4W (EIRP), pulse mode (max)
Receive sensitivity ≤-140dBm
Battery Replaceable lithium battery, single battery working time over 4 hours (in maximum pulse mode)
Detection distance ≥ 6m, compliant with the C-level product standard specified in GA1236-2015
Wireless Signal Detection Type GSM, WCDMA, CDMA2000, TD-SCDMALTE, LTE-A, 5G Bluetooth, WIFI
Supported Frequency Range 50MHz~6000MHz
Wireless Signal Reception Sensitivity -50dBm
Size 760mm *114mm * 108mm
Weight 1.6kg
Working conditions -10℃~+55℃; No more than 93%RH, with no condensate
*Special Announcement: Due to the product update and network display the existence of the conversion period, the page graphic parameters may be different from the actual product, the page graphic content does not serve as the basis for the actual delivery of specific products and technical parameters to determine the actual product configuration shall prevail. Intention to buy customers, please contact the sales staff to confirm in a timely manner, AWP retains the right to change the picture parameters and the final interpretation.
